Magnetic Separation Equipment

Stearns Suspended Magnets

Stearns Suspended Magnets are custom engineered ferrous material separation solutions utilizing standard components that are offered in both permanent and electromagnet versions to meet specific application requirements.

Stearns Suspended Magnets are designed to remove occasional unwanted tramp metal or ferrous impurities from process flows. These magnets are suspended over conveyor belts to effectively remove tramp metal to prevent damage to downstream process equipment such as crushers, pulverizes and grinders.

  • Low or minimal maintenance required
  • Permanent magnet version equipped with convenient wiper bar for material removal
  • Simple installation over any process flow
  • Available in Permanent and Electromagnetic (see details below)
  • Self-Cleaning Feature (see details below)

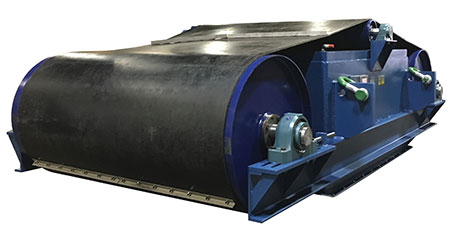

Self-Cleaning Feature

Stearns Self-Cleaning Suspended Magnets are customized solutions for automatically removing ferrous material from process flows on crushers, pulverizes, conveyor belts, screens and other processing equipment.

  • Application specific bearing and sealing arrangements for different environments
  • Suspension and belt designs to accommodate multiple processes
  • Optional belt guide system available
  • Direct, belted or hydraulic drive options with guarding
  • Configurations for cross belt and inline orientations
  • Standard permanent magnet sizes ranging from 18” to 48” (457 to 1220 mm) to accommodate most belt widths

Standard electromagnet sizes ranging from 25” to 110” (635 to 2795 mm) to accommodate most belt widths.

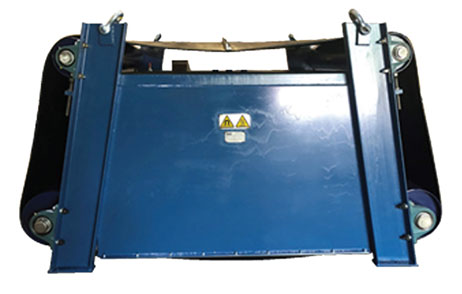

Stearns Suspended Permanent Magnets

Stearns Suspended Electromagnet Magnets
