Lifting Magnet Systems

Scrap Handling Magnets

LOADSTAR™ & SUPER LOADSTAR™ Series

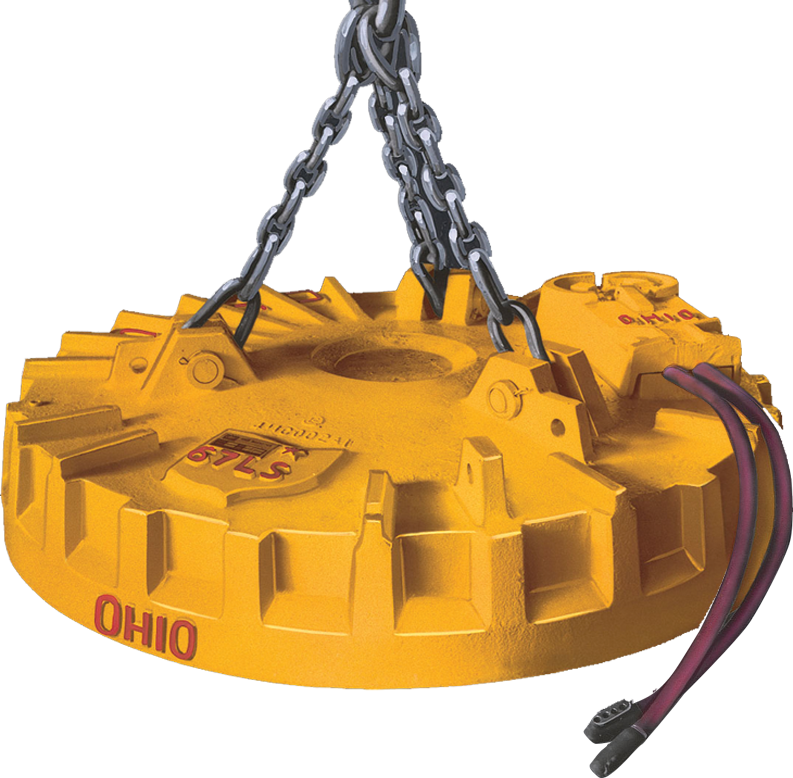

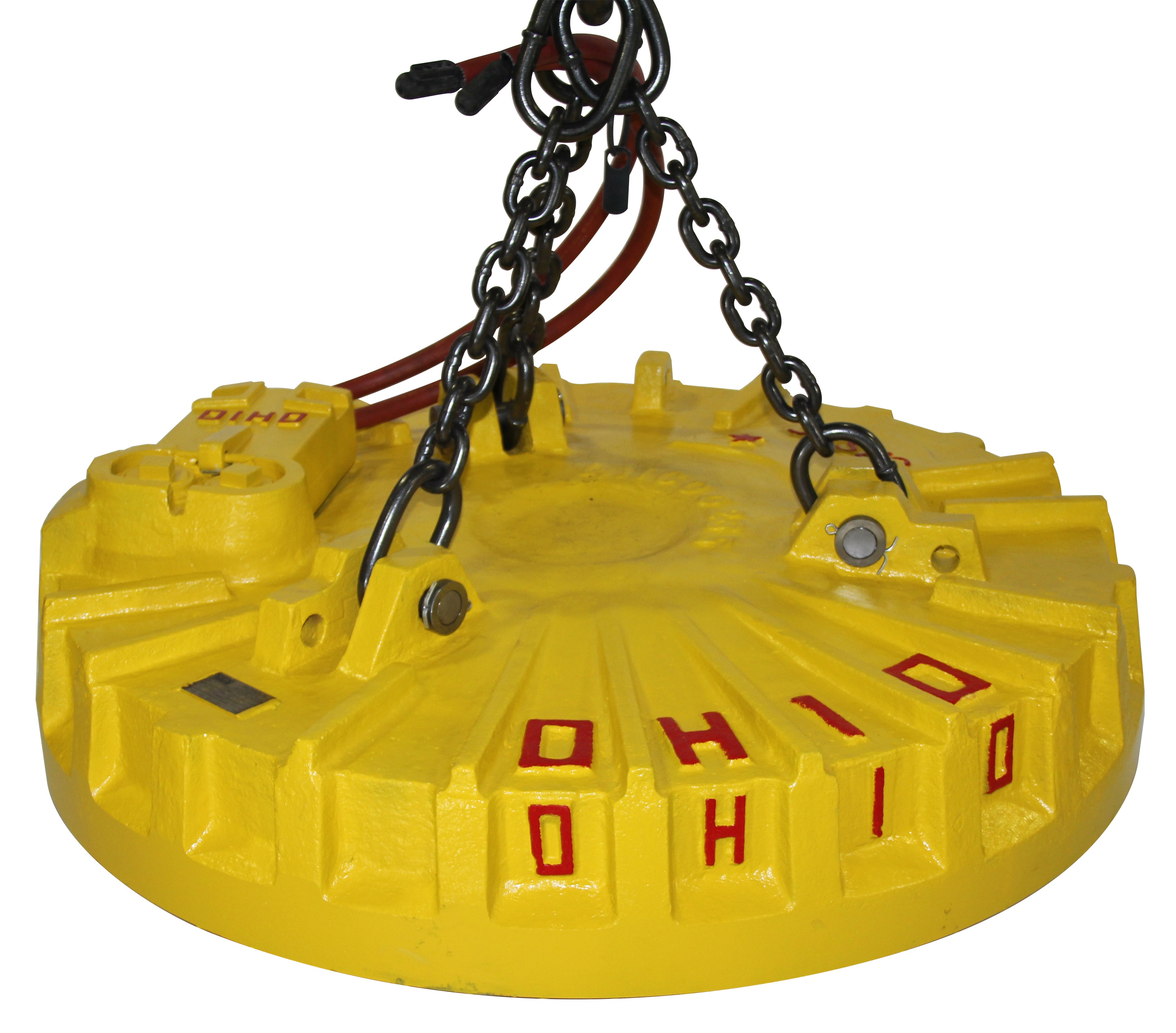

The LOADSTARTM series of lifting magnets feature a heavy duty cast case construction designed for

production scrap handling.

  • Sizes ranging from 48” to 72“(1220 to 1829 mm) in diameter
    • Sizes are cast case except for 72” fabricated
  • Continuous duty cycle ratings
  • Deep field (LOADSTAR) or extra deep field (SUPER LOADSTAR) field coil design
  • Magnet options matched to excavator mechanical and hydraulic capacity
  • Chain suspension standard
  • Standard hard face weld on SUPER LOADSTAR Series for high abrasion applications
  • Superior strength and rugged steel case construction
  • High-strength alloy steel lifting chains and extra thick work hardening manganese bottom plate complete the design circuit
  • High day-to-day production, long service life and easy serviceability
  • Low-cost, high-performance magnets ideal for scrap handling value

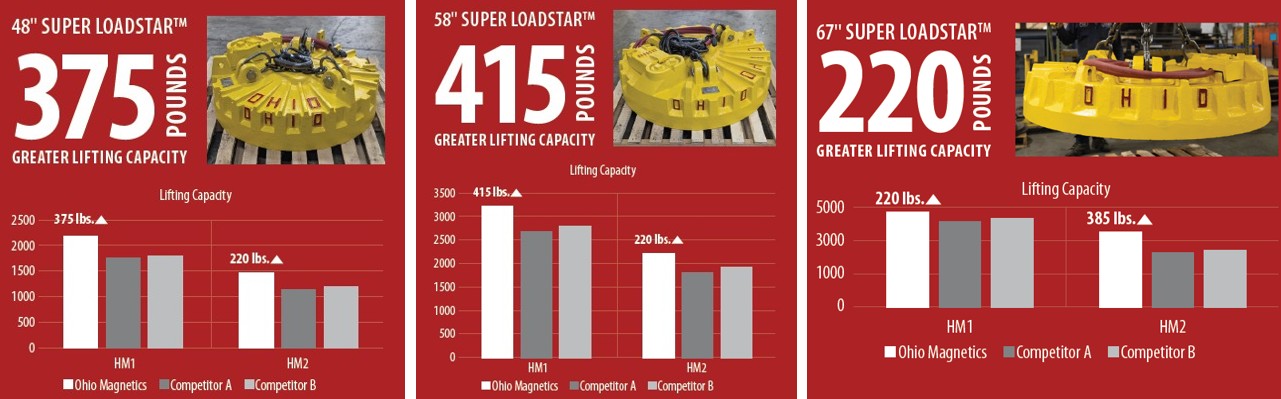

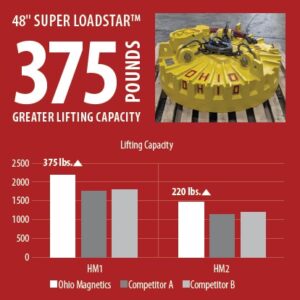

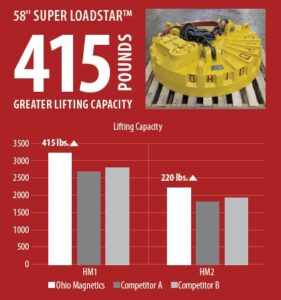

  • Lifting Capability Range – 1,800 to 4,200 lbs.
  • Lightweight and ideal for hydraulic machines
  • 230 VDC standard; special voltages available by request

Industrial Applications

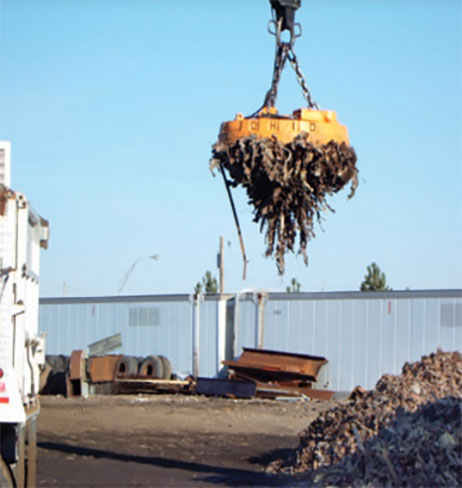

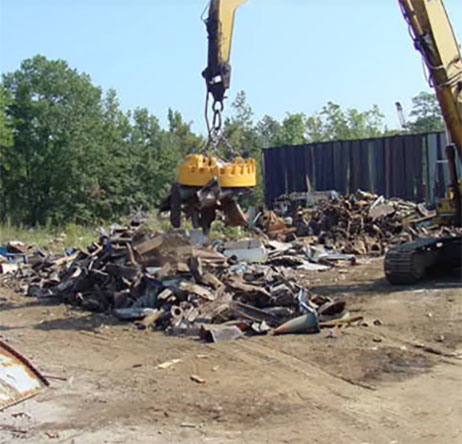

  • Production scrap handling
